User Manual

Instillation and usage instructions for the Thin Section Analysis (TSA) python package.

Created by Richard Boyne (rmb115@ic.ac.uk) on 25th August 2019

Downloads

The software is kept in the github repo: https://github.com/msc-acse/acse-9-independent-research-project-Boyne272.git

It contains a setup.py for instillation and all code is kept in the TSA directory.

The following code will clones the repo locally (checked in google colab).

from getpass import getpass
from gettext import gettext
import os

# if we have not already in a repo
if not os.path.isdir(".git"):

    # get username and password
    user = input('github username: ')
    password = getpass('github password: ')
    os.environ['GITHUB_AUTH'] = user + ':' + password

    # clone the repo and move into it
    !git clone --quiet https://$GITHUB_AUTH@github.com/msc-acse/acse-9-independent-research-project-Boyne272.git TSA_repo
    %cd TSA_repo

    # swap to the wanted branch
    !git checkout Release --quiet

# show where we are
!git show --summary

github username: Boyne272
github password: ··········
/content/TSA_repo
commit bc2b4667f6905c3795451de25b9d98438e3e401b (HEAD -> Release, origin/Release)
Author: Richard Boyne <boynerichard@yahoo.co.uk>
Date:   Tue Aug 27 14:16:50 2019 +0000

    moved all old code out of the TSA pack folder

    now it is not brought in when installing, still kept around as might be useful

 delete mode 100644 TSA/merging/legacy/tools.py
 rename {TSA/kmeans/legacy => notebooks/older_code}/Kmeans_Examples.ipynb (100%)
 rename {TSA/merging/legacy => notebooks/older_code}/image_filters.py (100%)
 rename {TSA/kmeans/legacy => notebooks/older_code}/kmeans_basic.py (100%)
 rename {TSA/kmeans/legacy => notebooks/older_code}/kmeans_img.py (100%)
 rename {TSA/kmeans/legacy => notebooks/older_code}/kmeans_local.py (100%)
 rename {TSA/kmeans/legacy => notebooks/older_code}/kmeans_local_failed.py (100%)
 rename {TSA/kmeans/legacy => notebooks/older_code}/kmeans_multi_fail.py (100%)
 rename {TSA/merging/legacy => notebooks/older_code}/merge_wrapper.py (100%)
 rename {TSA/merging/legacy => notebooks/older_code}/merge_wrapper_failed.py (100%)
 rename {TSA/merging/legacy => notebooks/older_code}/preprocessing.py (100%)
 rename {TSA/merging/legacy => notebooks/older_code}/recombination_wrapper.py (100%)
 rename {TSA/kmeans/legacy => notebooks/older_code}/tools.py (100%)
 rename {TSA/kmeans/legacy => notebooks/older_code}/tst_kmeans_basic.py (100%)
 rename {TSA/kmeans/legacy => notebooks/older_code}/tst_kmeans_img.py (100%)
 rename {TSA/kmeans/legacy => notebooks/older_code}/tst_kmeans_local.py (100%)

Installation

To install the module first the requierments need be installed, this can be done with.

!pip install -r requirements.txt

Requirement already satisfied: numpy==1.16.4 in /usr/local/lib/python3.6/dist-packages (from -r requirements.txt (line 1)) (1.16.4)
Requirement already satisfied: matplotlib==3.0.3 in /usr/local/lib/python3.6/dist-packages (from -r requirements.txt (line 2)) (3.0.3)
Requirement already satisfied: scipy==1.3.1 in /usr/local/lib/python3.6/dist-packages (from -r requirements.txt (line 3)) (1.3.1)
Requirement already satisfied: torch==1.1.0 in /usr/local/lib/python3.6/dist-packages (from -r requirements.txt (line 4)) (1.1.0)
Requirement already satisfied: scikit-image==0.15.0 in /usr/local/lib/python3.6/dist-packages (from -r requirements.txt (line 5)) (0.15.0)
Requirement already satisfied: kiwisolver>=1.0.1 in /usr/local/lib/python3.6/dist-packages (from matplotlib==3.0.3->-r requirements.txt (line 2)) (1.1.0)
Requirement already satisfied: pyparsing!=2.0.4,!=2.1.2,!=2.1.6,>=2.0.1 in /usr/local/lib/python3.6/dist-packages (from matplotlib==3.0.3->-r requirements.txt (line 2)) (2.4.2)
Requirement already satisfied: python-dateutil>=2.1 in /usr/local/lib/python3.6/dist-packages (from matplotlib==3.0.3->-r requirements.txt (line 2)) (2.5.3)
Requirement already satisfied: cycler>=0.10 in /usr/local/lib/python3.6/dist-packages (from matplotlib==3.0.3->-r requirements.txt (line 2)) (0.10.0)
Requirement already satisfied: PyWavelets>=0.4.0 in /usr/local/lib/python3.6/dist-packages (from scikit-image==0.15.0->-r requirements.txt (line 5)) (1.0.3)
Requirement already satisfied: pillow>=4.3.0 in /usr/local/lib/python3.6/dist-packages (from scikit-image==0.15.0->-r requirements.txt (line 5)) (4.3.0)
Requirement already satisfied: networkx>=2.0 in /usr/local/lib/python3.6/dist-packages (from scikit-image==0.15.0->-r requirements.txt (line 5)) (2.3)
Requirement already satisfied: imageio>=2.0.1 in /usr/local/lib/python3.6/dist-packages (from scikit-image==0.15.0->-r requirements.txt (line 5)) (2.4.1)
Requirement already satisfied: setuptools in /usr/local/lib/python3.6/dist-packages (from kiwisolver>=1.0.1->matplotlib==3.0.3->-r requirements.txt (line 2)) (41.2.0)
Requirement already satisfied: six>=1.5 in /usr/local/lib/python3.6/dist-packages (from python-dateutil>=2.1->matplotlib==3.0.3->-r requirements.txt (line 2)) (1.12.0)
Requirement already satisfied: olefile in /usr/local/lib/python3.6/dist-packages (from pillow>=4.3.0->scikit-image==0.15.0->-r requirements.txt (line 5)) (0.46)
Requirement already satisfied: decorator>=4.3.0 in /usr/local/lib/python3.6/dist-packages (from networkx>=2.0->scikit-image==0.15.0->-r requirements.txt (line 5)) (4.4.0)

Now to install the moudle use pip install in the directory where the setup.py file is.

pip install . # if currently in the repo

Processing /content/TSA_repo
Requirement already satisfied: numpy in /usr/local/lib/python3.6/dist-packages (from TSA==1.0.0) (1.16.4)
Requirement already satisfied: matplotlib in /usr/local/lib/python3.6/dist-packages (from TSA==1.0.0) (3.0.3)
Requirement already satisfied: scipy in /usr/local/lib/python3.6/dist-packages (from TSA==1.0.0) (1.3.1)
Requirement already satisfied: torch in /usr/local/lib/python3.6/dist-packages (from TSA==1.0.0) (1.1.0)
Requirement already satisfied: scikit-image in /usr/local/lib/python3.6/dist-packages (from TSA==1.0.0) (0.15.0)
Requirement already satisfied: python-dateutil>=2.1 in /usr/local/lib/python3.6/dist-packages (from matplotlib->TSA==1.0.0) (2.5.3)
Requirement already satisfied: kiwisolver>=1.0.1 in /usr/local/lib/python3.6/dist-packages (from matplotlib->TSA==1.0.0) (1.1.0)
Requirement already satisfied: cycler>=0.10 in /usr/local/lib/python3.6/dist-packages (from matplotlib->TSA==1.0.0) (0.10.0)
Requirement already satisfied: pyparsing!=2.0.4,!=2.1.2,!=2.1.6,>=2.0.1 in /usr/local/lib/python3.6/dist-packages (from matplotlib->TSA==1.0.0) (2.4.2)
Requirement already satisfied: PyWavelets>=0.4.0 in /usr/local/lib/python3.6/dist-packages (from scikit-image->TSA==1.0.0) (1.0.3)
Requirement already satisfied: imageio>=2.0.1 in /usr/local/lib/python3.6/dist-packages (from scikit-image->TSA==1.0.0) (2.4.1)
Requirement already satisfied: networkx>=2.0 in /usr/local/lib/python3.6/dist-packages (from scikit-image->TSA==1.0.0) (2.3)
Requirement already satisfied: pillow>=4.3.0 in /usr/local/lib/python3.6/dist-packages (from scikit-image->TSA==1.0.0) (4.3.0)
Requirement already satisfied: six>=1.5 in /usr/local/lib/python3.6/dist-packages (from python-dateutil>=2.1->matplotlib->TSA==1.0.0) (1.12.0)
Requirement already satisfied: setuptools in /usr/local/lib/python3.6/dist-packages (from kiwisolver>=1.0.1->matplotlib->TSA==1.0.0) (41.2.0)
Requirement already satisfied: decorator>=4.3.0 in /usr/local/lib/python3.6/dist-packages (from networkx>=2.0->scikit-image->TSA==1.0.0) (4.4.0)
Requirement already satisfied: olefile in /usr/local/lib/python3.6/dist-packages (from pillow>=4.3.0->scikit-image->TSA==1.0.0) (0.46)
Building wheels for collected packages: TSA
  Building wheel for TSA (setup.py) ... [?25l[?25hdone
  Created wheel for TSA: filename=TSA-1.0.0-cp36-none-any.whl size=41155 sha256=2476c8a3c458cc47319eb35aba98ba8bcdd32d8c52c9f221d6d3f686c918e8ed
  Stored in directory: /tmp/pip-ephem-wheel-cache-1u2763_c/wheels/ea/a3/39/2504a755f1161b16e6d23f984250c40e18af62f819ed7d4951
Successfully built TSA
Installing collected packages: TSA
Successfully installed TSA-1.0.0

Alternativly the direcory TSA can be place locally where it is needed and imported just as if it had been installed

Running Test Suites

All tests are contained in the modules directory, in the tests folder. Pytest is able to pick up on them, alternativly any test file will work if run by itself. Some of the tests requier the test images which are also in in the test folder.

!pytest # last run 27th Aug 2019

============================= test session starts ==============================
platform linux2 -- Python 2.7.15+, pytest-3.6.4, py-1.8.0, pluggy-0.7.1
rootdir: /content/TSA_repo, inifile:
collected 24 items

TSA/tests/test_AGNES.py ...                                              [ 12%]
TSA/tests/test_Image_processor.py ....                                   [ 29%]
TSA/tests/test_MSLIC.py ...                                              [ 41%]
TSA/tests/test_SLIC.py .....                                             [ 62%]
TSA/tests/test_Segment_Analyser.py .                                     [ 66%]
TSA/tests/test_Segments.py ........                                      [100%]

========================== 24 passed in 84.44 seconds ==========================

Example: Butterfly Segmentation

# Ipython Magic Functions
%matplotlib inline

# imports
import matplotlib.pyplot as plt
import numpy as np
import pandas as pd

# TAS imports
from TSA.pre_post_processing import Image_processor
from TSA.pre_post_processing import Segment_Analyser
from TSA.merging import AGNES
from TSA.merging import segment_group
from TSA.kmeans import SLIC
from TSA.kmeans import MSLIC_wrapper

Image Loading

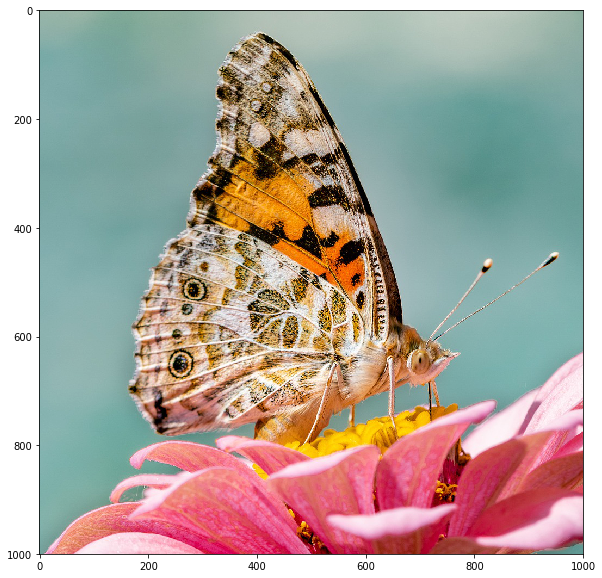

First we need to load the image, Image processor is a module to assist with loading an image and apply any kind of filters initially wanted.

butterfly_IP = Image_processor(path='images/butterfly.tif')
butterfly_IP.plot()
../_images/output_13_0.png

Segmentation

For the SLIC segmentation it help reduce disjointed segments if we first clur the image slightly, this quite easy to do with Image_processor.

blured_img = butterfly_IP.gauss(sigma=3)

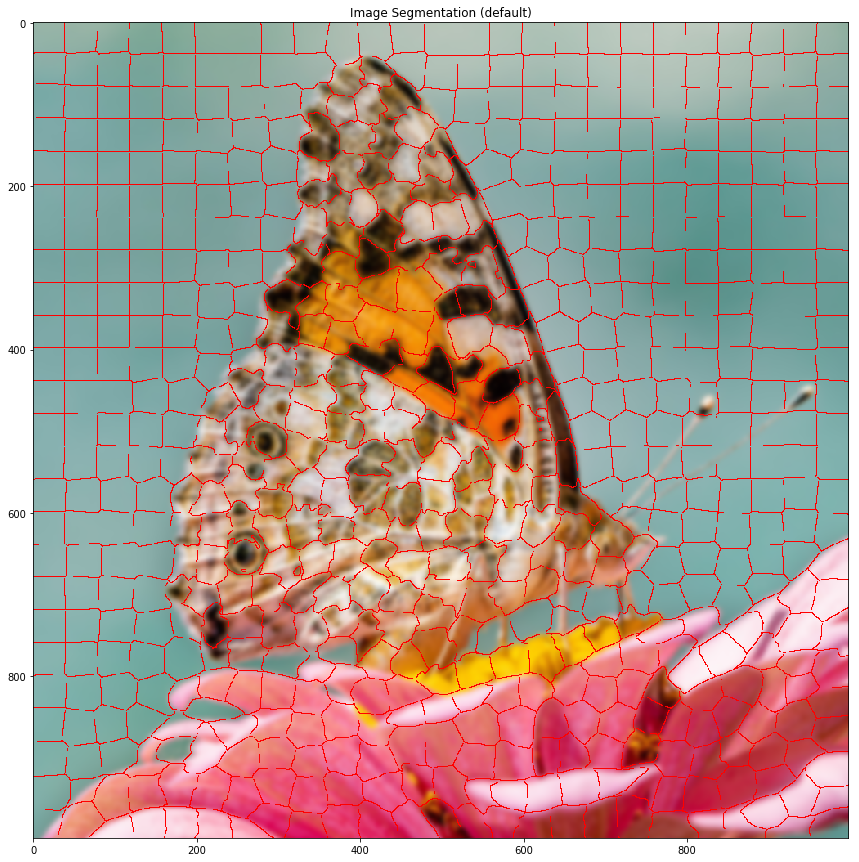

Now we can look at what SLIC manages to do with this.

# create the SLIC object iterate it and plot
butterfly_SLIC = SLIC(blured_img, bin_grid=[25, 25])
butterfly_SLIC.iterate(10)
butterfly_SLIC.plot()

Progress |###################################################| 85.1418 s
../_images/output_17_1.png

Segment Clustering

To extract features of each segment for clustering we need to create a segment_group obj. This will need the mask from the SLUC implenetation. When initialising disjoineted segments will be split, hence there will be more segments than in the above image.

# extract mask
butterfly_mask = butterfly_SLIC.get_segmentation()

# create segment groups, enforce size and plot
butterfly_segs = segment_group(butterfly_mask)

# plot the segments
original_img = butterfly_IP.imgs['original']
butterfly_segs.plot(back_img=original_img)

Initalising 641 segments
Progress |###################################################| 13.8670 s
../_images/output_19_1.png

This splitting makes several very small segments. We can force these to merge with there largest neighbour with segment_group.

butterfly_segs.enforce_size(min_size=50)

13 segments merged
Initalising 65 segments
Progress |###################################################| 1.6826 s

Notice how only 65 segments were recreated; since those with unchanging neighbours dont need any recaculations they are kept the same.

Now we can extract features from each segment, to do an extraction function is needed.

# define the features to be extracted
def basic_color_extraction(Xs, Ys, img1):
    avgs1 = img1[Ys, Xs].mean(axis=0)
    return [*avgs1]

# extract features
butterfly_feats = butterfly_segs.feature_extraction(
                      extract_func = basic_color_extraction,
                      func_vars = [blured_img])

# inspect features
titles = ['red_avg', 'green_avg', 'blue_avg']
pd.DataFrame(butterfly_feats, columns=titles).describe()
red_avg green_avg blue_avg
count 628.000000 628.000000 628.000000
mean 0.633492 0.590180 0.548509
std 0.178521 0.161467 0.188331
min 0.139023 0.050462 0.034291
25% 0.495582 0.529275 0.465894
50% 0.584799 0.646804 0.618828
75% 0.780434 0.693747 0.668248
max 0.986018 0.911795 0.935627

We have used a pandas dataframe to inspect the extracted features. They seem good, with means and standard deviations of similar magnitude. We can now use our chosen unspuervised clustering algorithm to group segments by common features. Here we are using the AGNES clustering

butterly_AGNES = AGNES(butterfly_feats)
butterly_AGNES.iterate()
butterly_AGNES.cluster_distance_plot('all')

Progress |###################################################| 0.3728 s
../_images/output_25_1.png

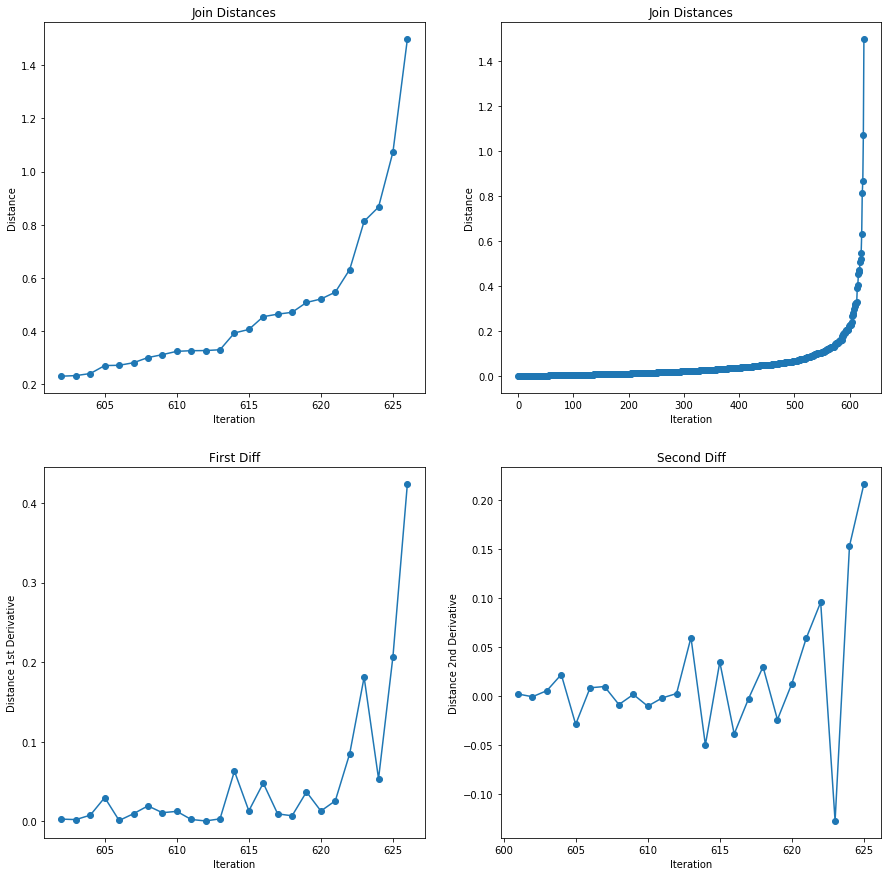

Plotted above is merge distance vs iterations and its respective derivatives on the last few iterations. In the second derivative there is a spike arounf iteration 610, suggesting that this is where we start merging different material groups. To get this point we cluster up to a certain viaration in standard deviation, here chosen to be 3.

# get the clustering up to 3rd standard deviation
butterly_clusters = butterly_AGNES.cluster_by_derivative(n_std=3., plot=False)

Clustering up to 2nd derivative 0.04021483184552015  distance  0.3929593875662745
Clustering into 14 segments

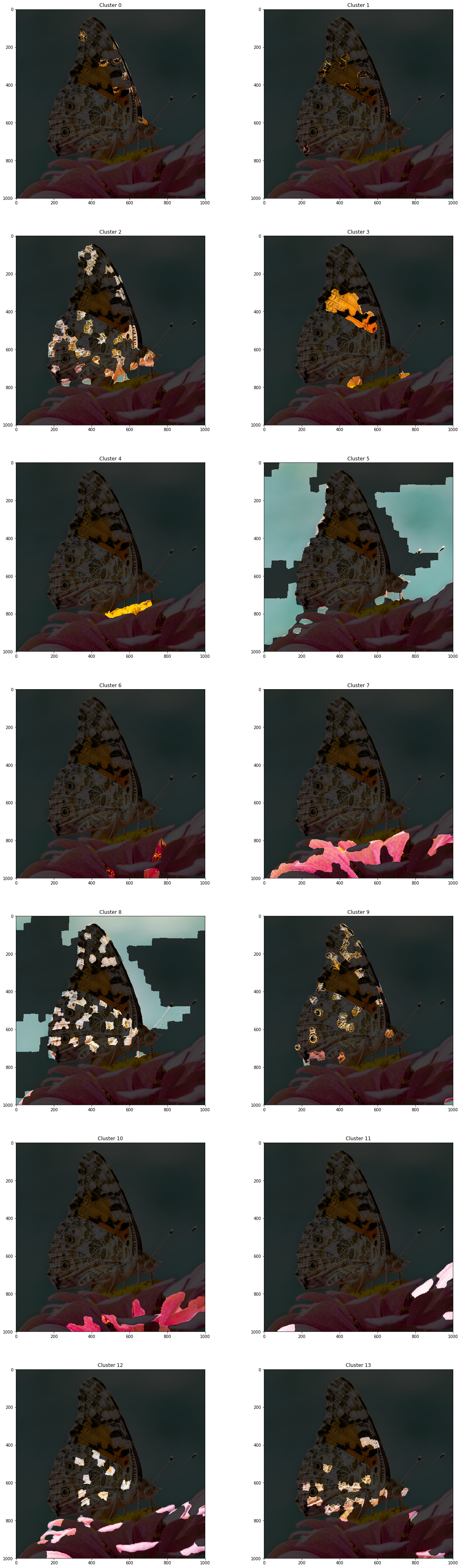

By passing this clustering to the segment_group we can plot what segments were cluster together.

# assign these cluster in the segment groups
butterfly_segs.assign_clusters(butterly_clusters)

# plot these clusters
butterfly_segs.plot('cluster_all', back_img = original_img)
../_images/output_29_0.png

Though only color was used the clusters are mostly reasonable, thoough a few regions of wing are confused with sky. If we are happy with these clusters we can merge with them, if not we can do another featuer extraction and clustering without needing to reinitalise the segment_group object.

Edge analysis

If we want to an edge detection can be done to assist the later merging so that only segments with no edge between them are merged. This is not needed to do the mergering, so this section can be skipped.

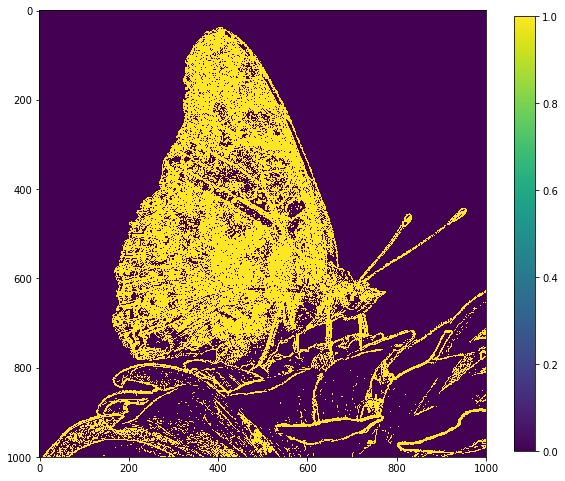

First we need an image with edges detected in it.

butterfly_IP.reset()
butterfly_IP.scharr()
grey_img = butterfly_IP.grey_scale()
binary_edges = butterfly_IP.threshold(value=.05)
butterfly_IP.plot()
../_images/output_32_0.png

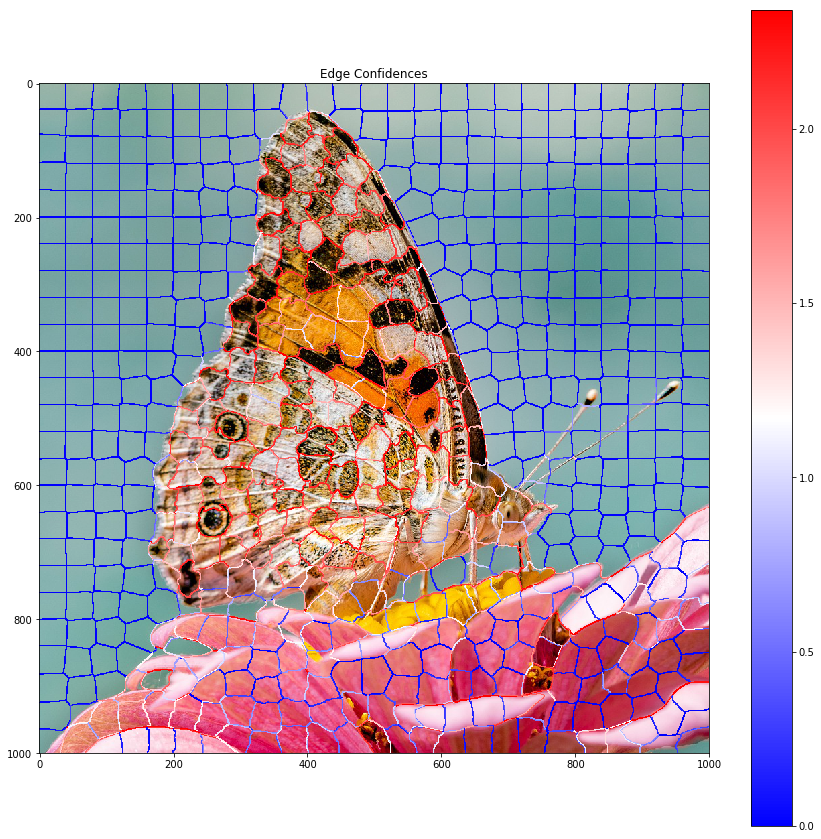

Now by defining an edge confidence function with this image (similar to the feature extraction function before) we can assign this to the segment_group object.

# define extraction function
def edge_extraction(Xs, Ys, scharr_img):
    return scharr_img[Ys, Xs].mean() / scharr_img.std()

# pass this to the group object and plot it
butterfly_segs.edge_confidence(confidence_func = edge_extraction,
                               func_vars = [binary_edges])
butterfly_segs.plot('edge_conf', back_img = original_img)
../_images/output_34_0.png

So as we can see some edges are confident that they exist and others are less so. Since these have been assigned to the segment_group they will automatically be considered in the merging stage (the threshold for an edge being present can be set if want)

Segment Merging

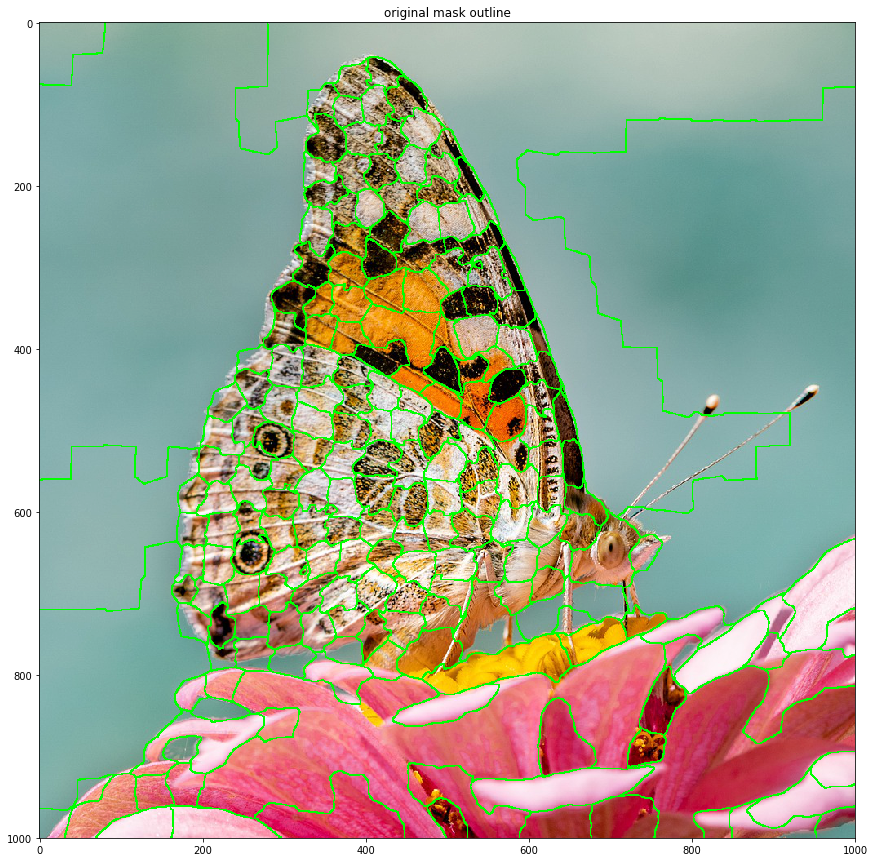

Now the segment_group knows the clustering (and edge confidences) we can instruct it to merge segments that are adjasent, in the same cluster (and have a edge confidence below the given threshold). Note we could also merge without clusters and just edge confidence instead.

# merge using clustering and edge confidence (if given)
butterfly_segs.merge_by_cluster(edge_present=1.)

# # merge if there is a low edge confidence only
# butterfly_segs.merge_by_edge(edge_absent=.1)

# plot the resultant clustering
butterfly_segs.plot('merged_edges', back_img=butterfly_IP.imgs['original'])

412 segments merged
Initalising 113 segments
Progress |###################################################| 3.0159 s
../_images/output_37_1.png

Repeat

At this point the process of clustering, edge detection and merging could be repeated if wanted.

Caution is needed when clustering as there are less samples in the clustering routene so it may struggle. Another point of caution is that if one experiments with different clustering here it will affect the clusters used in the segment analysis section.

This second repeat is done here as it is not benificial for this image.

Segmentation Analysis

Now we have our segmented image we can analyse the distributions within each cluster.

First we need to create the Segment_Analysis obj with the segmentation mask and clustering mask.

# extract the cluster mask
butterfly_cluster = butterfly_segs.get_cluster_mask()

# extract the segments mask
butterfly_mask = butterfly_segs.mask

# create the segment analyser obj
butterfly_SA = Segment_Analyser(img = original_img,
                                mask = butterfly_mask,
                                clusters=butterfly_cluster)

We can then label each cluster as something more appropirate for the analysis. If we think two clusters are actually part of the same material we give them both the same label and the clusters are grouped. Here we will just label with sky, wing or flower for simplicity. Note that even within this relativly coarse labelling there are still regions of conflict where segments of say wing and sky are clustered together.

butterfly_SA.set_labels()

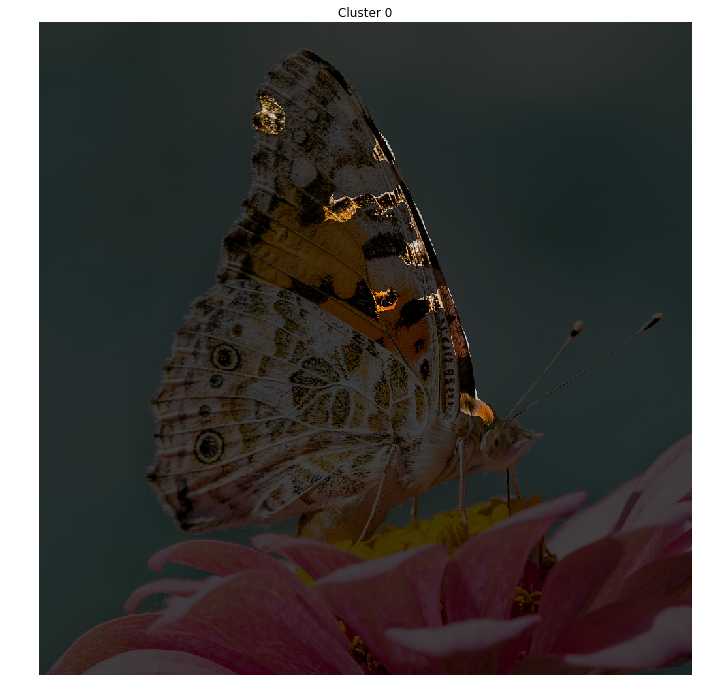

../_images/output_42_0.png
Currently labelled  0
Give a new label (leave blank to unchange):
wing

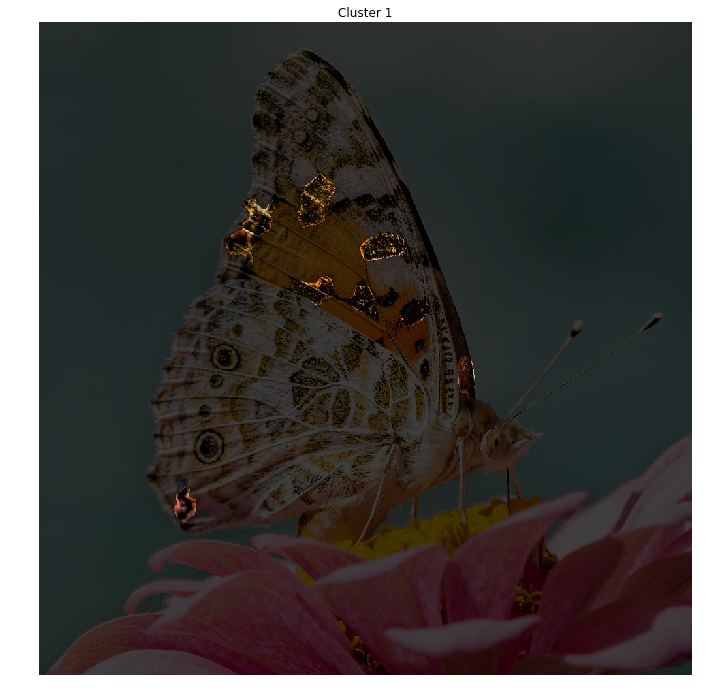

../_images/output_42_2.png
Currently labelled  1
Give a new label (leave blank to unchange):
wing

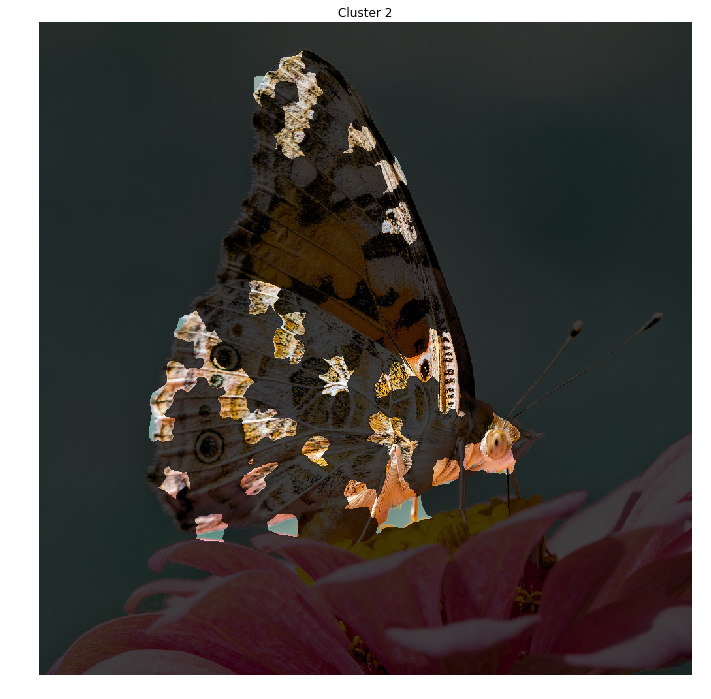

../_images/output_42_4.png
Currently labelled  2
Give a new label (leave blank to unchange):
wing

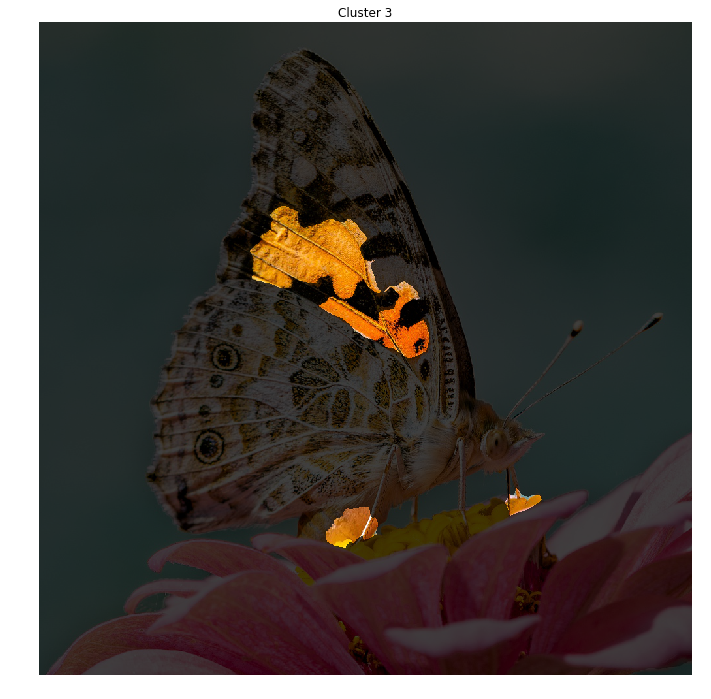

../_images/output_42_6.png
Currently labelled  3
Give a new label (leave blank to unchange):
wing

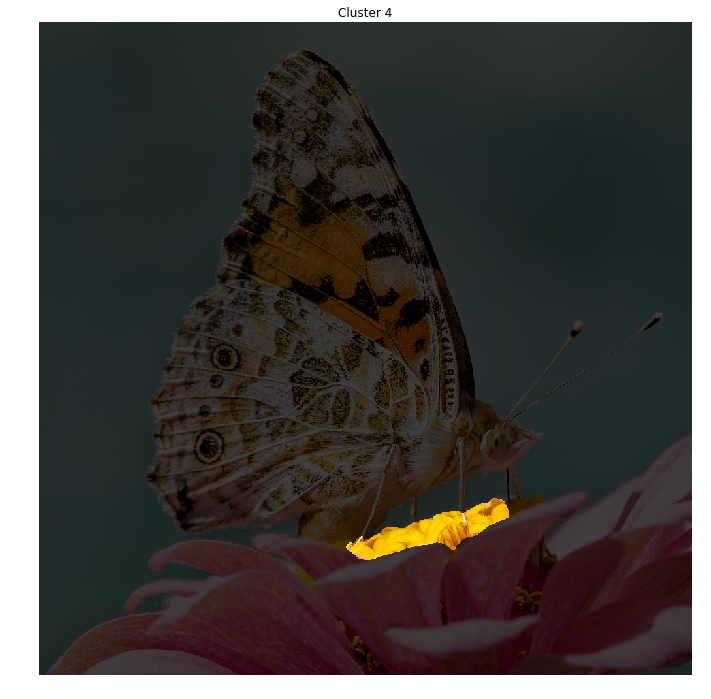

../_images/output_42_8.png
Currently labelled  4
Give a new label (leave blank to unchange):
flower core

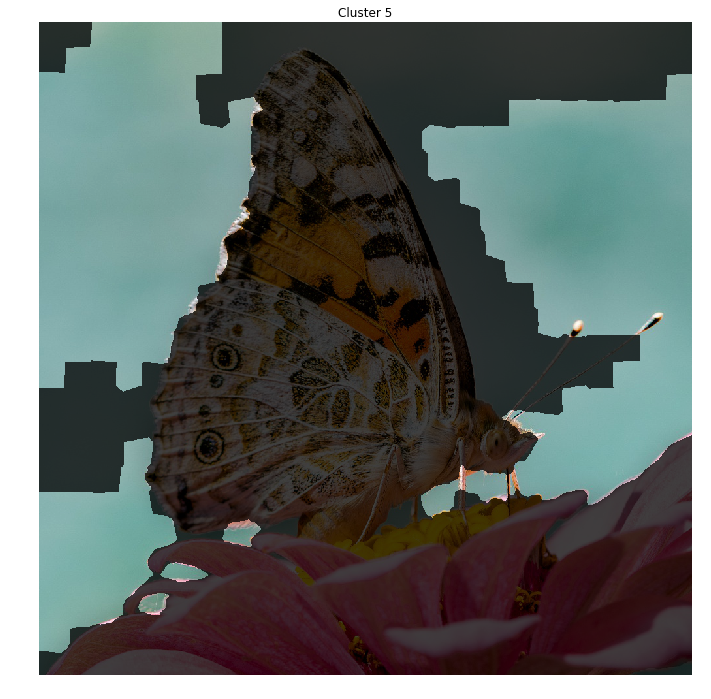

../_images/output_42_10.png
Currently labelled  5
Give a new label (leave blank to unchange):
sky

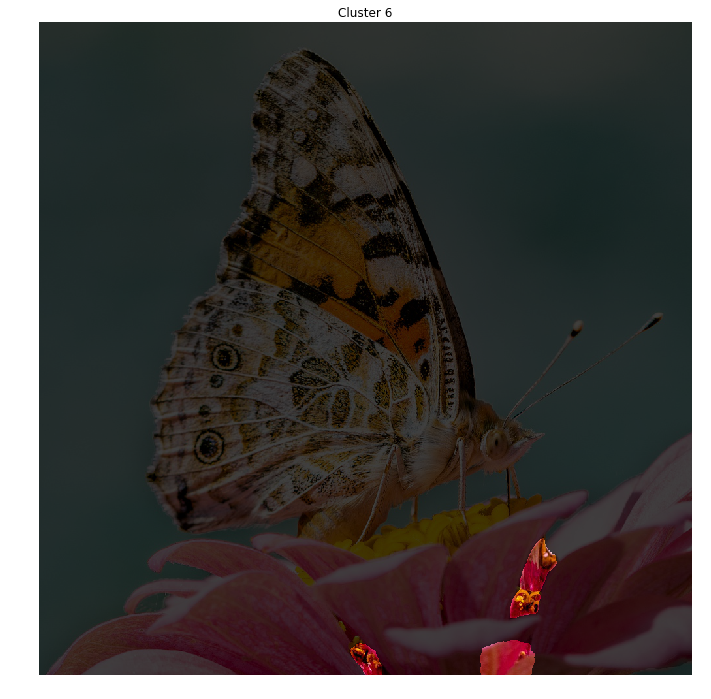

../_images/output_42_12.png
Currently labelled  6
Give a new label (leave blank to unchange):
flower petal

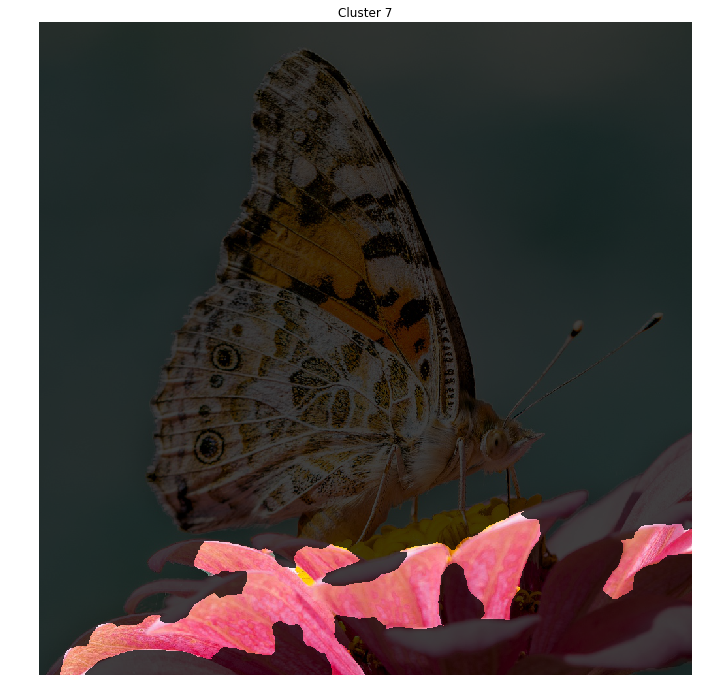

../_images/output_42_14.png
Currently labelled  7
Give a new label (leave blank to unchange):
flower petal

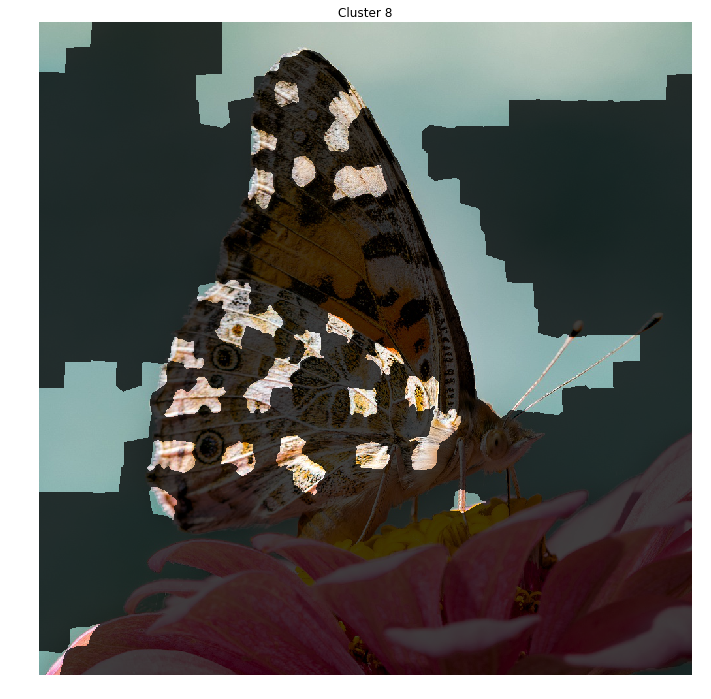

../_images/output_42_16.png
Currently labelled  8
Give a new label (leave blank to unchange):
sky

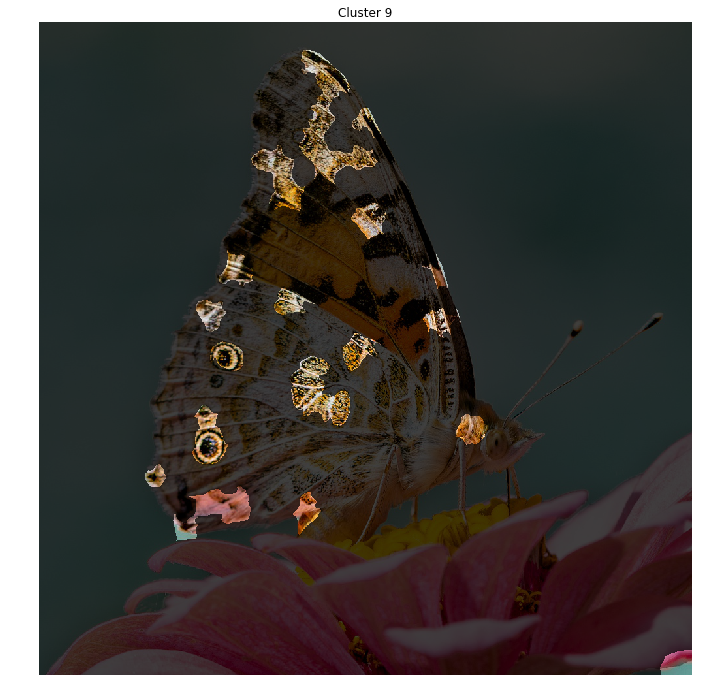

../_images/output_42_18.png
Currently labelled  9
Give a new label (leave blank to unchange):
wing

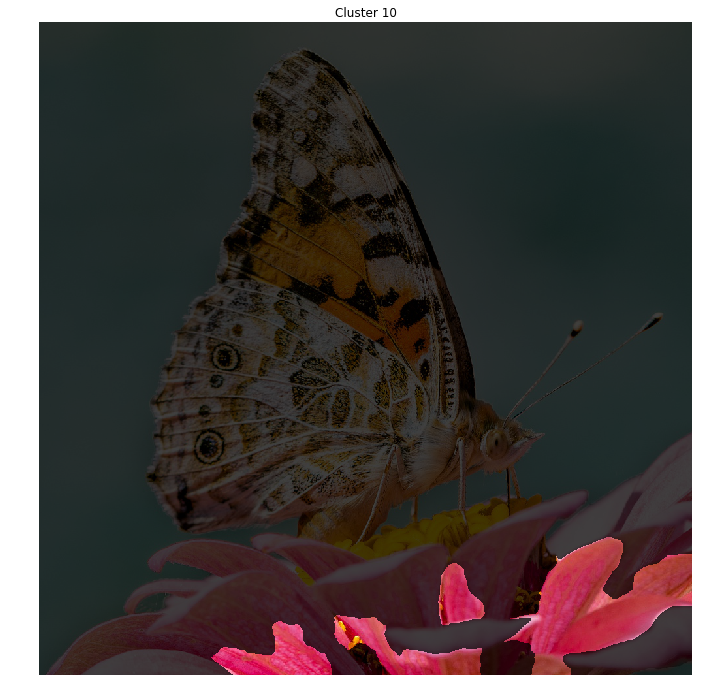

../_images/output_42_20.png
Currently labelled  10
Give a new label (leave blank to unchange):
flower petal

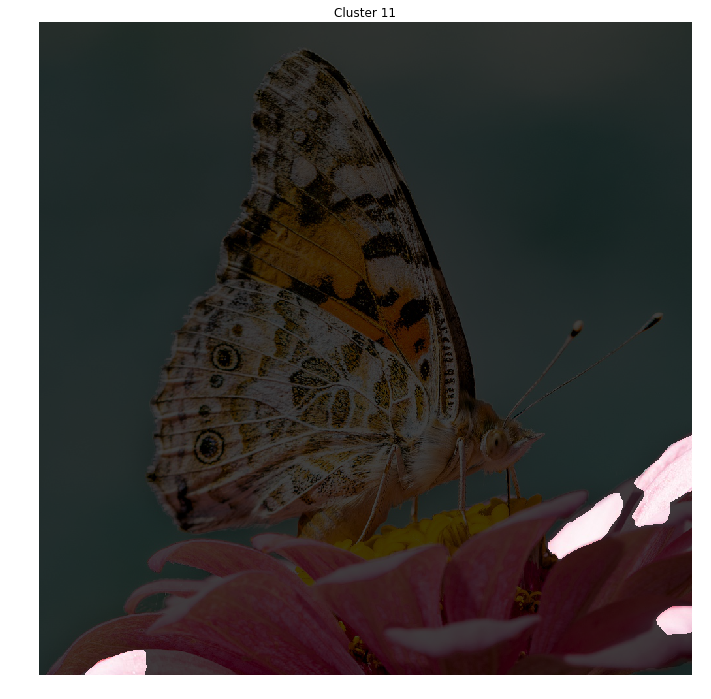

../_images/output_42_22.png
Currently labelled  11
Give a new label (leave blank to unchange):
flower petal

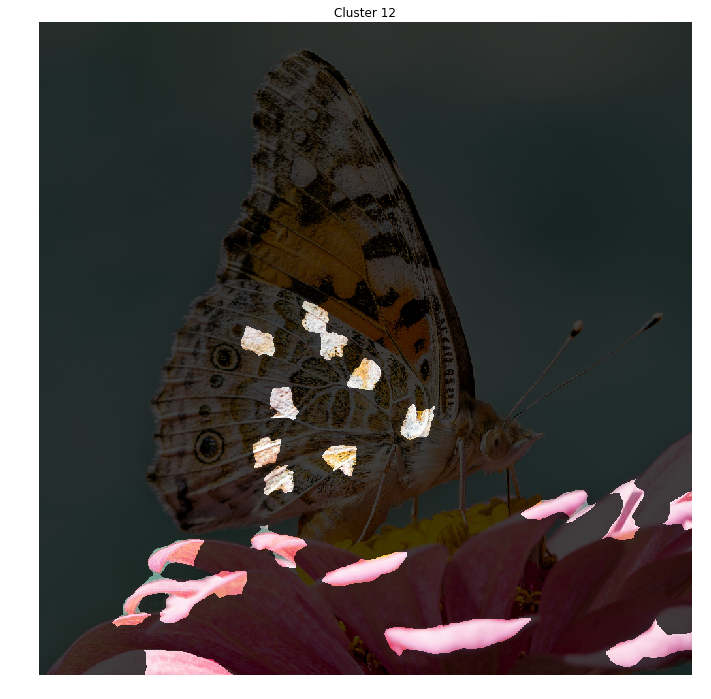

../_images/output_42_24.png
Currently labelled  12
Give a new label (leave blank to unchange):
flower petal

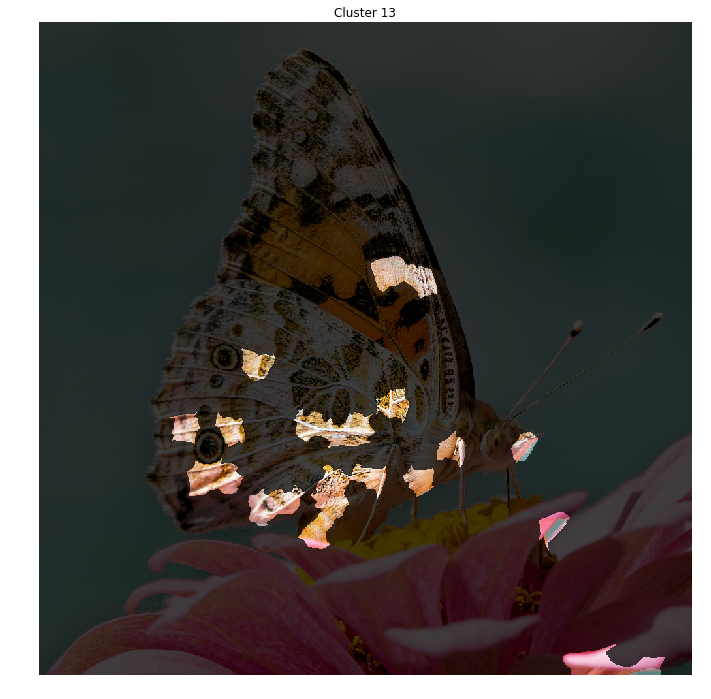

../_images/output_42_26.png
Currently labelled  13
Give a new label (leave blank to unchange):
wing
Current Labels: ['wing', 'flower core', 'sky', 'flower petal']

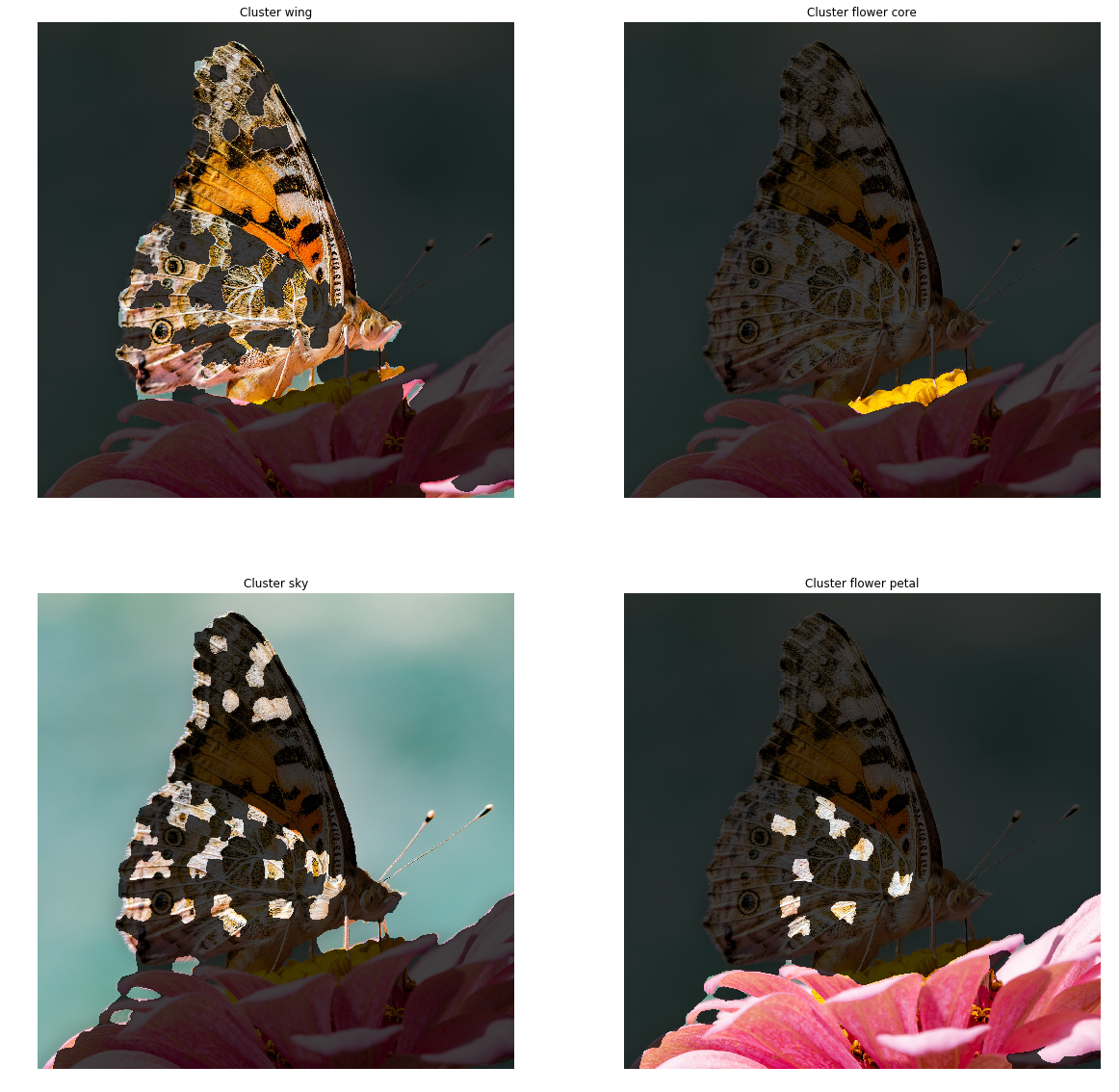

Since the clusters are now labeled we can look at the overall (final) segmentation.

butterfly_SA.plot_clusters()
../_images/output_44_0.png

As can be seen there is some confusion between bits of wing and the other two regions, other than that the segementation seems ok.

We can see the distributions of each cluster as well.

butterfly_SA.get_composition()
butterfly_SA.get_grain_count()

Tabel of Compositions
20.56 %      wing
0.95 %       flower core
57.57 %      sky
20.92 %      flower petal
Tabel of Grain Count
130          wing
2    flower core
44   sky
40   flower petal
../_images/output_46_1.png ../_images/output_46_2.png

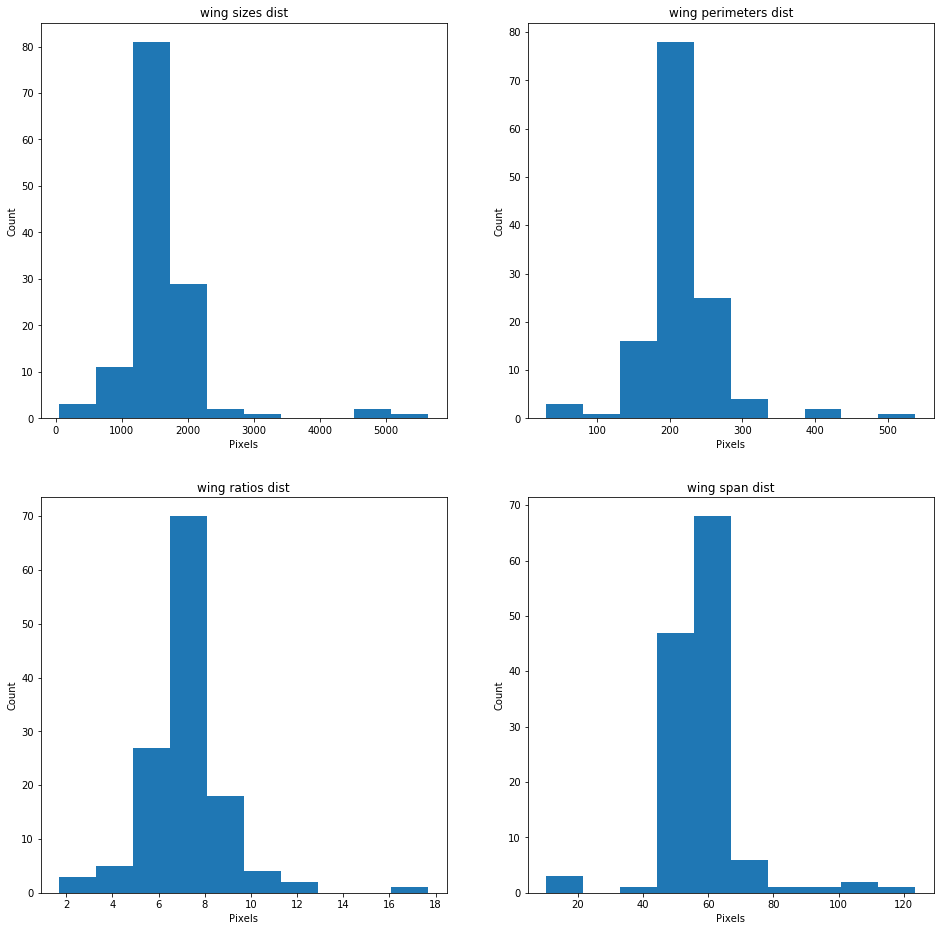

# these take slighly longer to find
for label in ['sky', 'wing', 'flower core', 'flower petal']:
    butterfly_SA.get_gsd(label)

Progress |###################################################| 2.9440 scalculating span

Progress |###################################################| 8.7556 scalculating span

Progress |###################################################| 0.0686 scalculating span

Progress |###################################################| 2.7868 scalculating span

Progress |###################################################| 3.0739 s

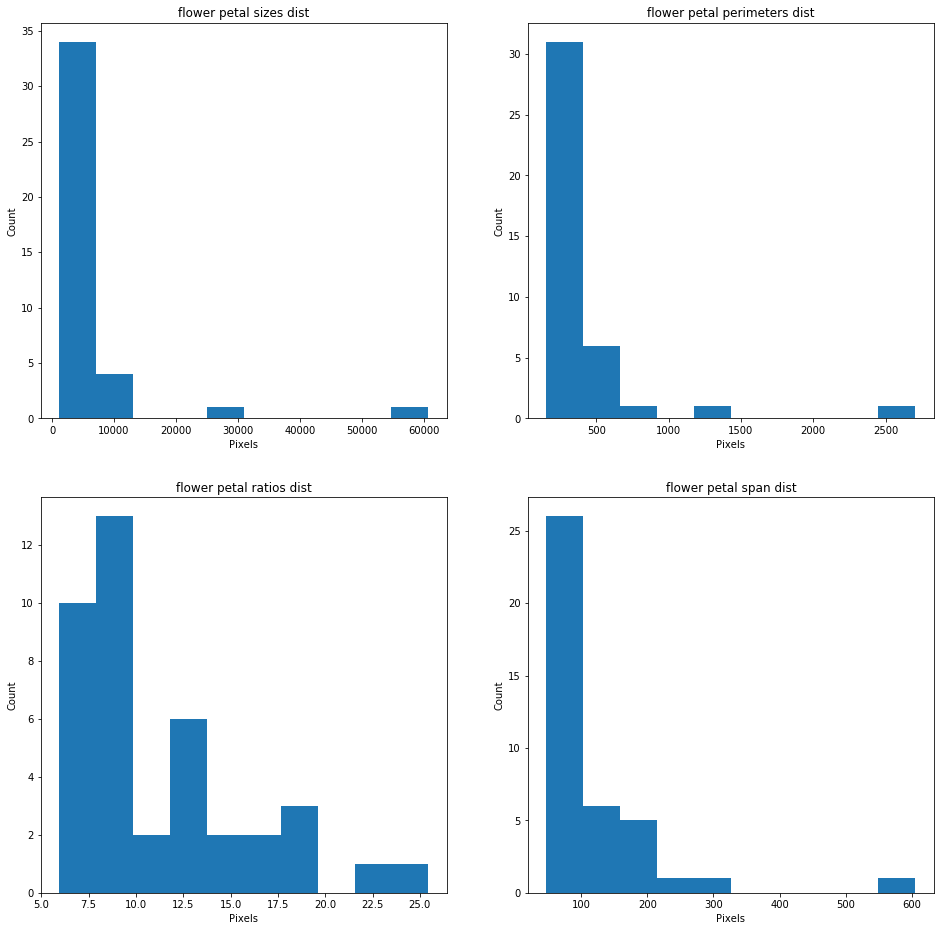

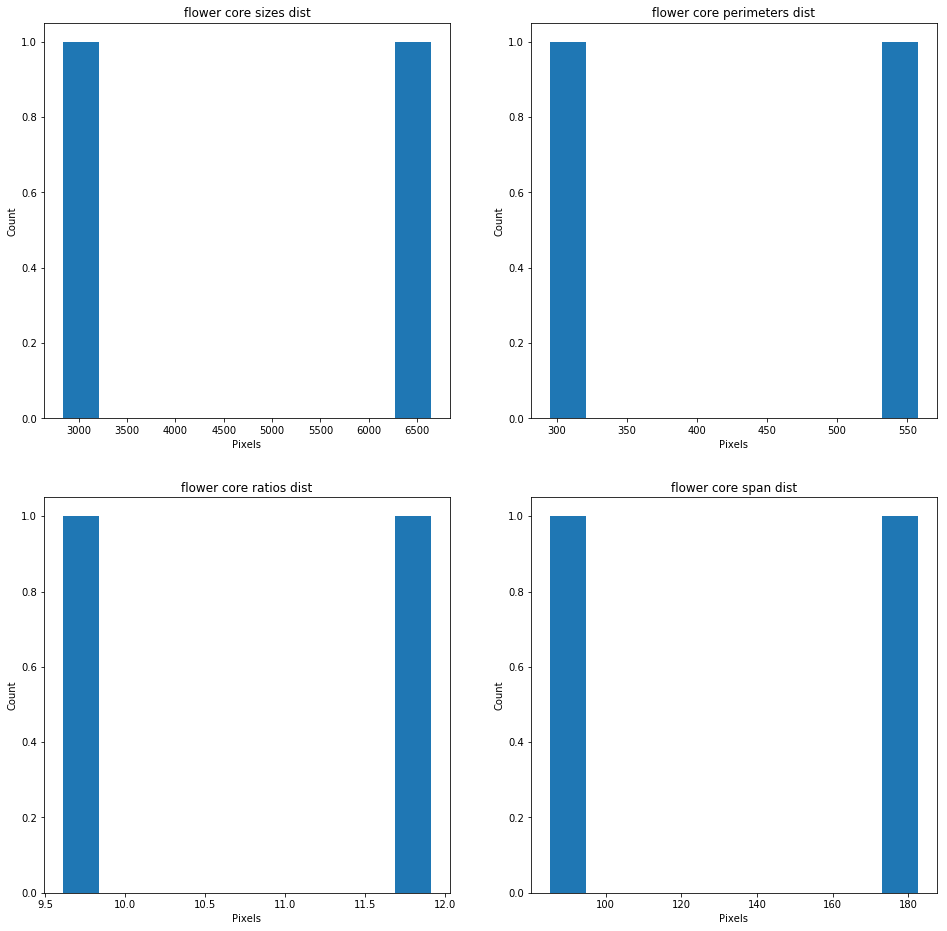

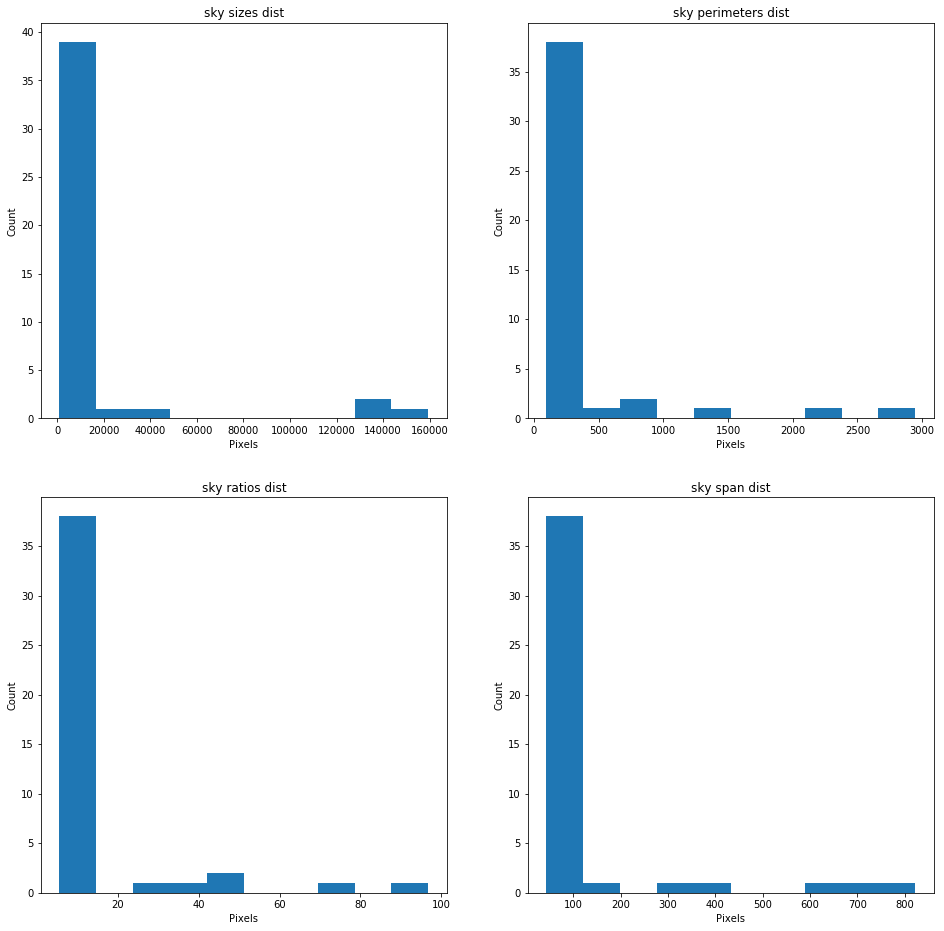

../_images/output_47_1.png ../_images/output_47_2.png ../_images/output_47_3.png ../_images/output_47_4.png

If any of the results want to be further analysed than an option return_arr in the above functions get the specific values plotted above.

To save results all that needed is to save the segmentation mask and cluster mask. These can likewise be used to pick up from any point in the routene shown here.
